CERTISAFE MIXERS
CertiSafe Mixer

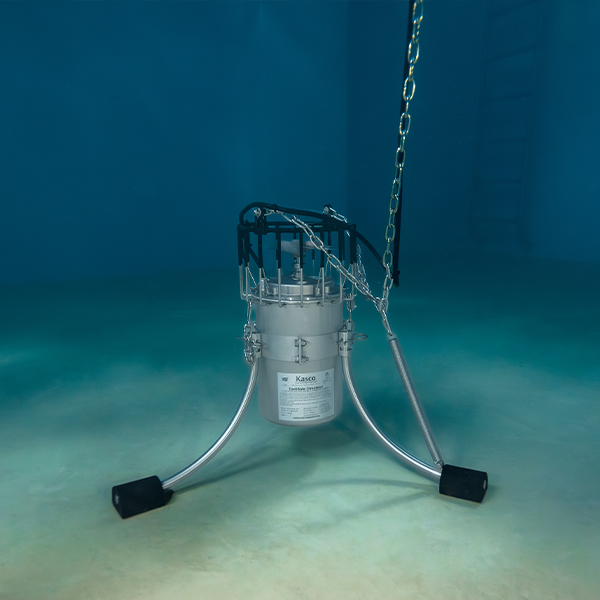

Kasco’s CertiSafe™ Mixer for potable water is certified and tested to strict NSF/ANSI 61 & NSF/ANSI 372 standards and designed for use in drinking water storage tanks and reservoirs 20,000 gallons and larger. This powerful active tank mixer is fully submersible up to 50 ft. of depth, easy to install, and can be mounted using a floor, suspension, or pipe mount.
The tank mixer features a durable stainless steel body combined with a domed stainless steel top, ensuring it will withstand continual use in your tank environments. It includes top safety features with a food grade mineral oil lubricant and a double mechanical seal.
Control Panels für CertiSafe ™ sind 60Hz, einphasige Geräte in 120 v und 240V. UL gelistet und einfach zu installieren, beinhalten diese Paneele einen H-O-a-Steuerschalter, eine LED-Anzeige und SCADA-I/O für Fernbedienung und Überwachung. Control panel, unit mounting, and solar options are available separately.
Kasco CertiSafe Mixers are ETL Listed to UL and CSA standards.
About
Funktionen
Package Includes
1/2HP Units
3/4HP Units
1HP Units
2HP Units
White Papers and Featured Installations
- Improving Water Quality in Texas and Beyond
- Case Study: Water Quality in Storage Tanks
- The Benefits of Water Mixing
- Why Should I Install a Water Storage Tank Mixer
- An Introduction to Chlorine Residuals
- Active Mixing Solves Water Tank Problems
- How Active Mixing Prevents Ice Damage
- What Your Chlorine Residual is Trying to Tell You
- Stratification Concerns in Water Storage Tanks
- Featured Installation – Delivering a Reliable Water Supply in All Weathers
Garantie
Customers can choose between the standard 3-year warranty and the 5-year warranty for an additional cost. Contact our sales team for more information.
Available through approved distribution only.
White Papers and Featured Installations
- Improving Water Quality in Texas and Beyond
- Case Study: Water Quality in Storage Tanks
- The Benefits of Water Mixing
- Why Should I Install a Water Storage Tank Mixer
- An Introduction to Chlorine Residuals
- Active Mixing Solves Water Tank Problems
- How Active Mixing Prevents Ice Damage
- What Your Chlorine Residual is Trying to Tell You
- Stratification Concerns in Water Storage Tanks
- Featured Installation – Delivering a Reliable Water Supply in All Weathers
Garantie
Customers can choose between the standard 3-year warranty and the 5-year warranty for an additional cost. Contact our sales team for more information.
Available through approved distribution only.
Vorteile eines leistungsstarken aktiven Mixers
- Eliminates thermal stratification
- Reduziert Rest Verlust
- Eliminiert die chemische Schichtung
- Reduces odors and inconsistencies in water taste
- Reduziert Nitrifikation Risiko in chloraminated Wasser
- Senkt die Rate der Desinfektion Nebenprodukt (DBP)
- Verhindert Eis-und Korrosionsschäden
- Senkt die Rate der Sedimentakkumulation
Vorteile eines leistungsstarken aktiven Mixers
- Eliminates thermal stratification
- Reduziert Rest Verlust
- Eliminiert die chemische Schichtung
- Reduces odors and inconsistencies in water taste
- Reduziert Nitrifikation Risiko in chloraminated Wasser
- Senkt die Rate der Desinfektion Nebenprodukt (DBP)
- Verhindert Eis-und Korrosionsschäden
- Senkt die Rate der Sedimentakkumulation
- CertiSafe Mixer
- Control panel
- Mounting option
- Power cord
- Cord grip and cable support
- CertiSafe Mixer
- Control panel
- Mounting option
- Power cord
- Cord grip and cable support
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
| Teilenummer | Tank Size | Volt | HP | Cable Length (ft.) | Cable Gauge | Amps | Lock Rotor Verstärker | Thrust (lbs.) |
|---|---|---|---|---|---|---|---|---|
| 2400C61050 | Up to .5MG | 120 | 1/2 | 50 | 16 | 5.7 | 12 | 31 |
| 2400C61075 | Up to .5MG | 120 | 1/2 | 75 | 14 | 5.7 | 12 | 31 |
| 2400C61100 | Up to .5MG | 120 | 1/2 | 100 | 14 | 5.7 | 12 | 31 |
| 2400C61150 | Up to .5MG | 120 | 1/2 | 150 | 12 | 5.7 | 12 | 31 |
| 2400C61200 | Up to .5MG | 120 | 1/2 | 200 | 12 | 5.7 | 12 | 31 |
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
| Teilenummer | Tank Size | Volt | HP | Cable Length (ft.) | Cable Gauge | Amps | Lock Rotor Verstärker | Thrust (lbs.) |
|---|---|---|---|---|---|---|---|---|
| 3400C61050 | Up to 2.5MG | 120 | 3/4 | 50 | 16 | 7 | 18 | 37 |
| 3400C61075 | Up to 2.5MG | 120 | 3/4 | 75 | 14 | 7 | 18 | 37 |
| 3400C61100 | Up to 2.5MG | 120 | 3/4 | 100 | 14 | 7 | 18 | 37 |
| 3400C61150 | Up to 2.5MG | 120 | 3/4 | 150 | 12 | 7 | 18 | 37 |
| 3400C61200 | Up to 2.5MG | 120 | 3/4 | 200 | 12 | 7 | 18 | 37 |
| 3400HC61050 | Up to 2.5MG | 208-240 | 3/4 | 50 | 14 | 3.5 | 9 | 37 |
| 3400HC61075 | Up to 2.5MG | 208-240 | 3/4 | 75 | 14 | 3.5 | 9 | 37 |
| 3400HC61100 | Up to 2.5MG | 208-240 | 3/4 | 100 | 14 | 3.5 | 9 | 37 |
| 3400HC61150 | Up to 2.5MG | 208-240 | 3/4 | 150 | 12 | 3.5 | 9 | 37 |
| 3400HC61200 | Up to 2.5MG | 208-240 | 3/4 | 200 | 12 | 3.5 | 9 | 37 |
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
| Teilenummer | Tank Size | Volt | HP | Cable Length (ft.) | Cable Gauge | Amps | Lock Rotor Verstärker | Thrust (lbs.) |
|---|---|---|---|---|---|---|---|---|
| 4400C61050 | Up to 5MG | 120 | 1 | 50 | 14 | 9.1 | 40 | 42 |
| 4400C61075 | Up to 5MG | 120 | 1 | 75 | 14 | 9.1 | 40 | 42 |
| 4400C61100 | Up to 5MG | 120 | 1 | 100 | 12 | 9.1 | 40 | 42 |
| 4400C61150 | Up to 5MG | 120 | 1 | 150 | 10 | 9.1 | 40 | 42 |
| 4400C61200 | Up to 5MG | 120 | 1 | 200 | 10 | 9.1 | 40 | 42 |
| 4400HC61050 | Up to 5MG | 208-240 | 1 | 50 | 14 | 4.5 | 20 | 42 |
| 4400HC61075 | Up to 5MG | 208-240 | 1 | 75 | 14 | 4.5 | 20 | 42 |
| 4400HC61100 | Up to 5MG | 208-240 | 1 | 100 | 14 | 4.5 | 20 | 42 |
| 4400HC61150 | Up to 5MG | 208-240 | 1 | 150 | 12 | 4.5 | 20 | 42 |
| 4400HC61200 | Up to 5MG | 208-240 | 1 | 200 | 12 | 4.5 | 20 | 42 |
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
| Teilenummer | Tank Size | Spannung | HP | Cable Length (ft.) | Cable Gauge | Amps | Lock Rotar Amps | Thrust (lbs.) |
|---|---|---|---|---|---|---|---|---|
| 8400C61050 | Over 5MG | 208-240 | 2 | 50 | 14 | 9 | 40 | 56 |
| 8400C61075 | Over 5MG | 208-240 | 2 | 75 | 14 | 9 | 40 | 56 |
| 8400C61100 | Over 5MG | 208-240 | 2 | 100 | 12 | 9 | 40 | 56 |
| 8400C61150 | Over 5MG | 208-240 | 2 | 150 | 12 | 9 | 40 | 56 |
| 8400C61200 | Over 5MG | 208-240 | 2 | 200 | 12 | 9 | 40 | 56 |
Note: 12 AWG & larger cords include IP68 submersible quick disconnect & stainless-steel strain relief.
Links to product files including specifications,
owner’s manuals, and other related documents
for CertiSafe Municipal Mixers.
- CertiSafe™ Brochure
- CertiSafe™ Mixer Manual
- CertiSafe™ Suspended Mount Assembly Manual (SM-50) - Current (Purchased After 7/20/2023)
- CertiSafe™ Suspended Mount Assembly Manual (SM-50) - Old (Purchased Before 7/20/2023)
- CertiSafe™ Suspended Mount Assembly Manual (SM-100) - Current (Purchased After 7/20/2023)
- CertiSafe™ Suspended Mount Assembly Manual (SM-100) - Old (Purchased Before 7/20/2023)
- CertiSafe™ Floor Mount Assembly Manual (RM-100) - Current (Purchased After 7/20/2023)
- CertiSafe™ Floor Mount Assembly Manual (RM-100) - Old (Purchased Before 7/20/2023)
- CertiSafe™ Floor Mount Assembly Manual (RM-150)
- CertiSafe™ Pipe Mount Assembly Manual - Current (Purchased After 7/20/2023)
- CertiSafe™ Pipe Mount Assembly Manual - Old (Purchased Before 7/20/2023)
- CertiSafe™ Control Panel Manual (CS-100 & CS-200)
- CertiSafe™ Control Panel Manual (CS-150 & CS-250)
- Potable Water CSI Specification
- In-Tank Potable Water Aerator CSI Specification
Mounting Options
