J Series Fountains

Kasco’s J Series Fountains offer dramatic, aesthetically pleasing displays at the best value on the market.

Designed with both beauty and function in mind, each package includes multiple twist-and-lock nozzles at no extra charge, allowing you to choose from attention-demanding geysers to elegant 3-tier displays.

Illuminate your fountain during the evening hours with one of our WaterGlow Light Kits with snap-on clips for easy installation (purchased separately).

J Series Fountains are available as 3/4, 1, 2, 3, 5, and 7.5HP units.

Warranty periods:

  • 2 years on 3/4 and 1HP units
  • 3 years on 2HP units
  • 5 years on 3, 5 and 7.5HP units.

VIEW J SERIES FOUNTAIN PRICING

Categories: ,

About

Features

Package Includes

North America Specs

International Specs

Pattern Information

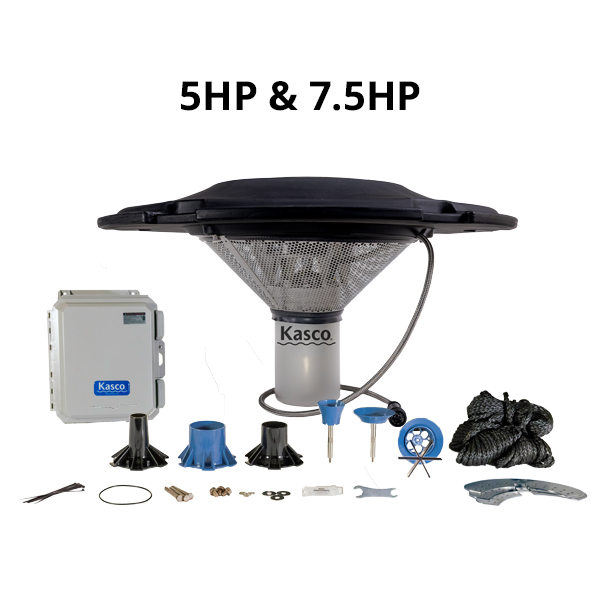

For maximum ruggedness on our most powerful units, all 5HP and 7.5HP fountains are built with solid stainless steel legs. This heavy-duty construction provides the ultimate peace of mind when installing these large units into the most challenging field environments.

Kasco offers Premium Fountain Nozzles (purchased separately) for all HP sizes for even more display options.

Add one of our WaterGlow Lighting Kits (purchased separately) to illuminate your display into the evening hours.

For maximum ruggedness on our most powerful units, all 5HP and 7.5HP fountains are built with solid stainless steel legs. This heavy-duty construction provides the ultimate peace of mind when installing these large units into the most challenging field environments.

Kasco offers Premium Fountain Nozzles (purchased separately) for all HP sizes for even more display options.

Add one of our WaterGlow Lighting Kits (purchased separately) to illuminate your display into the evening hours.

  • Available as 3/4, 1, 2, 3, 5, and 7.5HP
  • Offered as 60Hz and 50Hz, 120V and 208-240V, and single and three phase options
  • Complete packages are ETL approved to UL and CSA standards
  • 2-year warranty on 3/4HP and 1HP units
  • 3-year warranty on 2HP units (optional 5 year extended warranty available)
  • 5-year warranty on 3, 5, and 7.5HP units
  • 50Hz units include a 2-year warranty

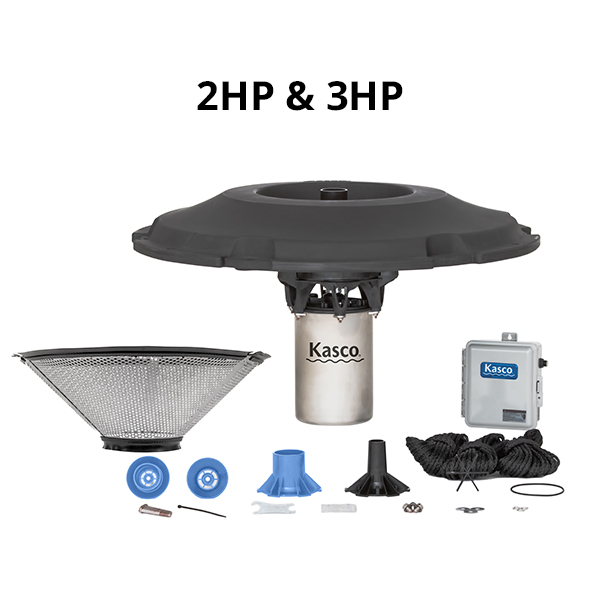

  • Motor unit
  • Float
  • Bottom screen
  • 5 Interchangeable nozzles
  • Control panel with GFCI protection
  • Mooring lines
  • Power cord
  • 50Hz units include a motor unit, 15m mooring lines, multiple nozzles, and power cord
60Hz Models
Size (HP)
Cord Length (ft.)
Voltage
Phase
Minimum Depth (in.)
Amps
3400JF
3/4
50, 100, 150, 200
120
1
17.5
6.7
3400HJF
3/4
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
17.5
3.3
4400JF
1
50, 100, 150, 200
120
1
19
10.7
4400HJF
1
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
19
5.3
8400JF
2
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
20
10.7
2.3JF
2
50, 100, 150, 200, 250, 300, 400, 500
208-240
3
20
7.5
2.3HJF
2
50, 100, 150, 200, 250, 300, 400, 500
460-480
3
20
3.6
3.1JF
3
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
24
13
3.3JF
3
50, 100, 150, 200, 250, 300, 400, 500
208-240
3
24
10.3
3.3HJF
3
50, 100, 150, 200, 250, 300, 400, 500
460-480
3
24
5
5.1JF
5
100, 150, 200, 250, 300, 400, 500
208-240
1
26
20
5.3JF
5
100, 150, 200, 250, 300, 400, 500
208-240
3
26
16
5.3HJF
5
100, 150, 200, 250, 300, 400, 500
460-480
3
26
7.8
7.3JF
7.5
100, 150, 200, 250, 300, 400, 500
208-240
3
28
20
7.3HJF
7.5
100, 150, 200, 250, 300, 400, 500
460-480
3
28
10
50Hz Models
Size (HP)
Cord Length
Voltage
Phase
Minimum Depth (cm)
Amps
2400EJF
1/2
1m stub, 10m, 30m
220-240
1
45
2.2
3400EJF
3/4
1m stub, 10m, 30m
220-240
1
45
3.5
4400EJF
1
1m stub, 10m, 30m
220-240
1
49
6.5
8400EJF
2
1m stub
220-240
1
51
9.5
2.3EHJF
2
1m stub
380-415
3
51
3.3
3.1EJF
3
1m stub
220-240
1
61
12.6
3.3EHJF
3
1m stub
380-415
3
61
5
5.3EHJF
5
1m stub
380-415
3
71
7.7

Balsam 3-Tier

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 2 All 14 ft. 32 ft.
60Hz 3 All 19 ft. 34 ft.
60Hz 5 All 18 ft. 34 ft.
60Hz 7.5 All 21 ft. 36 ft.
50Hz 1 All 2.8m 7.3m
50Hz 2 All 4.9m 9.4m
50Hz 3 All 5m 10.2m
50Hz 5 All 4.7m 9.4m

Linden

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 3/4 All 9 ft. 29 ft.
60Hz 1 All 12 ft. 31 ft.
60Hz 2 1 18 ft. 32 ft.
60Hz 2 3 14 ft. 30 ft.
60Hz 3 All 20.5 ft. 38 ft.
60Hz 5 1 20 ft. 41 ft.
60Hz 5 3 19 ft. 41 ft.
60Hz 7.5 All 26 ft. 46 ft.
50Hz 1/2 All 2.3m 6.7m
50Hz 3/4 All 2.7m 8.5m
50Hz 1 All 2.8m 8.3m
50Hz 2 All 4.5m 9.8m
50Hz 3 All 5.5m 11.9m
50Hz 5 All 6.2m 12.2m

Cypress

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 3/4 All 7 ft. 17 ft.
60Hz 1 All 9 ft. 28 ft.
50Hz 1/2 All 1.8m 4.5m
50Hz 3/4 All 2.1m 5.5m

Sequoia

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 3/4 All 13 ft. 8 ft.
60Hz 1 All 18 ft. 11 ft.
50Hz 1/2 All 3.2m 2.4m
50Hz 3/4 All 3.5m 2.4m

Willow

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 3/4 All 6.5 ft. 21 ft.
60Hz 1 All 9 ft. 31 ft.
50Hz 1/2 All 1.6m 5.2m
50Hz 3/4 All 1.9m 5.8m

Birch

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 3/4 All 7 ft. 5 ft.
60Hz 1 All 11 ft. 8 ft.
60Hz 2 1 9 ft. 9 ft.
60Hz 2 3 9 ft. 8 ft.
60Hz 3 All 14 ft. 9 ft.
60Hz 5 1 22 ft. 11 ft.
60Hz 5 3 21 ft. 9 ft.
60Hz 7.5 All 26 ft. 11 ft.
50Hz 1/2 All 1.7m 1.5m
50Hz 3/4 All 2.1m 2m
50Hz 1 All 1.9m 2.5m
50Hz 2 All 3.3m 2.5m
50Hz 3 All 4.1m 3.1m
50Hz 5 All 5.8m 3m

Redwood

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 2 All 22 ft. 6 ft.
60Hz 3 All 20 ft. 4 ft.
60Hz 5 All 32 ft. 6 ft.
60Hz 7.5 All 36 ft. 8 ft.
50Hz 1 All 4m 1.3m
50Hz 2 All 6.9m 1.8m
50Hz 3 All 7.2m 1.8m
50Hz 5 All 8.1m 1.8m

Spruce

Power Frequency HP Phase Pattern Height Pattern Width
60Hz 2 1 19 ft. 8 ft.
60Hz 2 3 17 ft. 4 ft.
60Hz 3 1 25 ft. 9 ft.
60Hz 3 3 27 ft. 8 ft.
60Hz 5 1 29 ft. 10 ft.
60Hz 5 3 32 ft. 10 ft.
60Hz 7.5 All 34 ft. 12 ft.
50Hz 1 All 3.8m 2.2m
50Hz 2 All 5.7m 2.5m
50Hz 3 All 7m 2.7m
50Hz 5 All 7.9m 2.7m
